Description
Ergonomic design
Convenient and easy to use
Multiple built-in interface, USB / WI fi / Bluetooth interface for choice;
Fast and accurately decode all standard 2D bar codes;
Good anti-shock performance;
Service life of button reaches up to 7 million times
Suitable for supermarket, mall, shops, post office, warehouse etc to use.
| Specification | ||
|---|---|---|

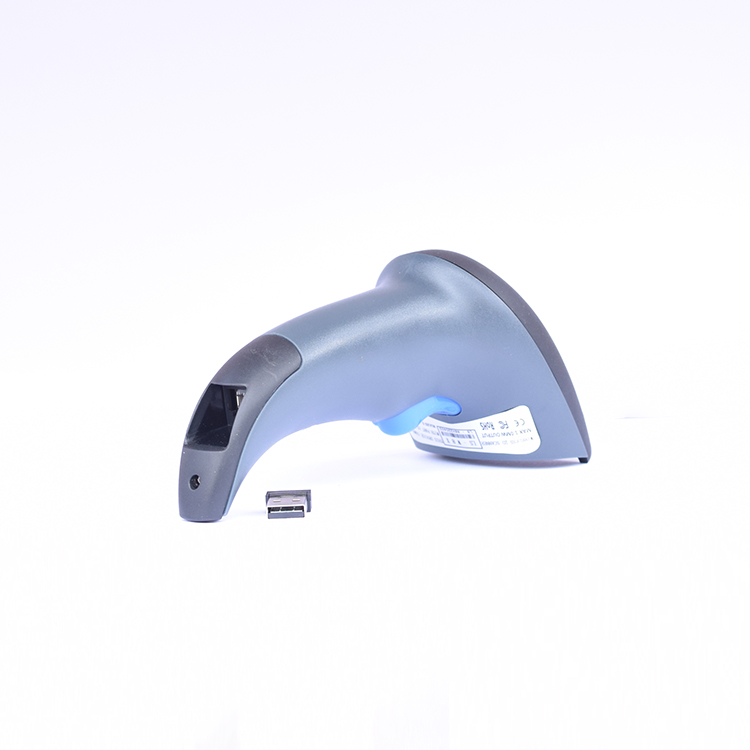

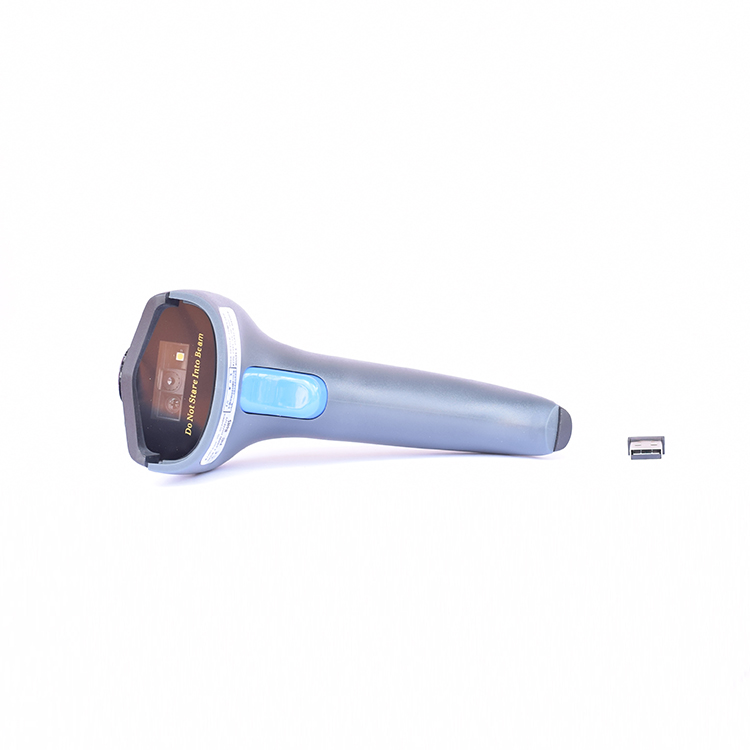

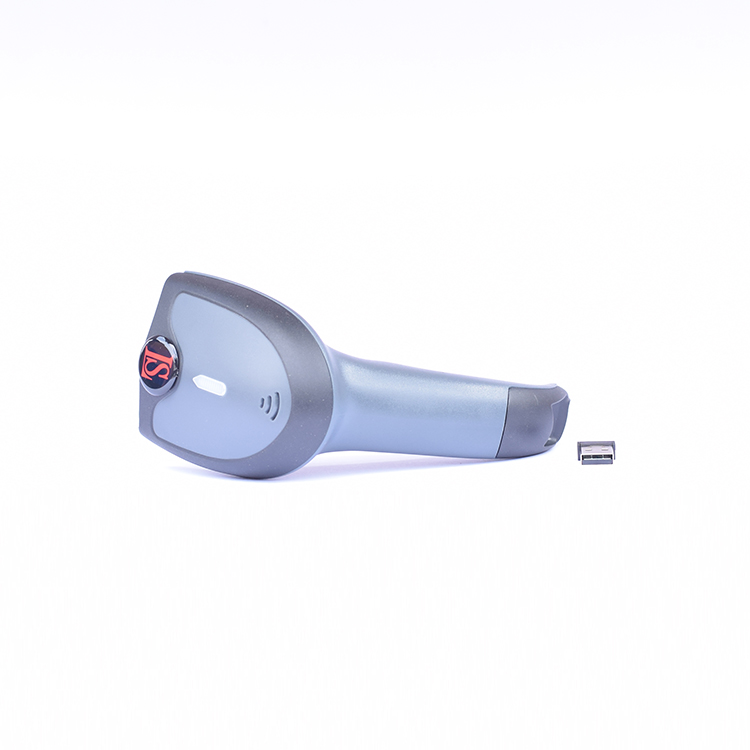

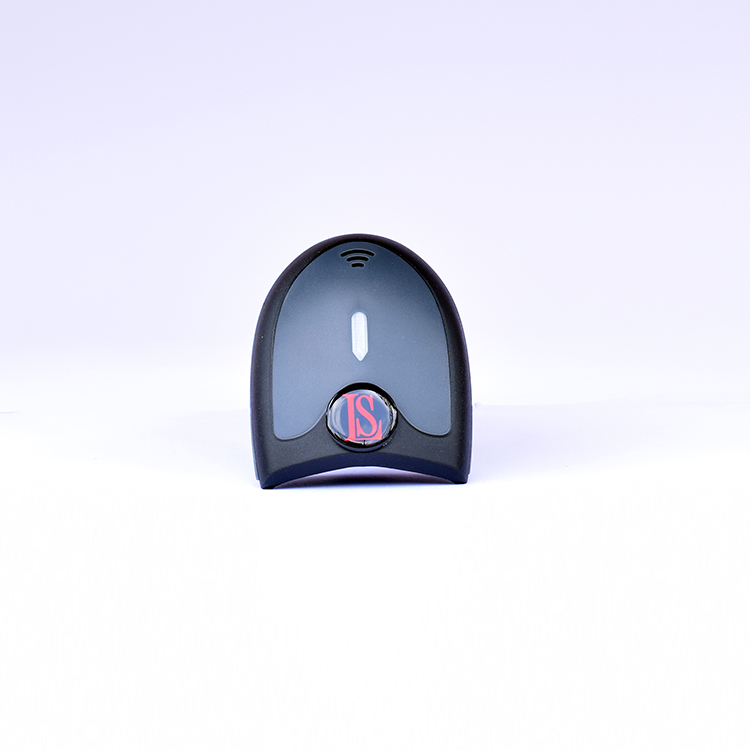

| Item name | : | 2D Wi – Fi Handheld Barcode Scanner |
| Light source | CMOS | |
| Charging Time | 2 – 3 Hrs | |
| Working Distance | Approximately 25 Meters | |
| Barcode Supported Symboligies | 2D : PDF417、QR Code (QR1/2, Micro)、Data Matrix (ECC200, ECC000, 050, 080, 100, 140)、Chinese Sensible Code, etc 1D : Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Coda bar, Code 93, Code 11, etc |
|
| Scan per charge | 25000 times | |
| Depth of scan field | Code 39 40mm~165mm(5mil) Ean-13 50mm~365mm(13mil) Data Matrix 35mm~115mm(10mil) QR Code 35mm-145mm (15mil) PDF 417 45mm-115mm(6.67mil) |
|
| Scan angle | Yaw (Skew) 45° & Pitch60° | |
| Battery capacity | 2000 MAH | |
| Decode speed | 5 in / s (12.7 cm) | |
| Electrical / Mechanical Parameters | ||
| Working Voltage | 3.3 VDC ±5% | |
| Current | working 230mA Standby : 3.4mA (RS232）, 54.0mA (USB) | |
| Rated power consumption | 186 mW | |
| Environment | ||
| Operating temperature | -20°C – 45°C | |
| Storage temperature | –20°C – 45°C | |
| Operating humidity | Pass 1.5m free fall test | |
| Electromagnetic interference | According to EN8001,Par1 standard | |
| Dustproof waterproof | According to IEC529,IP42 standard | |
| Scanner size | L*W*H : 165*65*90 mm | |
| Weight | 220gm (without cables) | |
| Shell material | ABS+PVC+PC | |
| Color | Black / grey | |
| Accessories | Charging cable , Manual & Wi – Fi Receiver | |
