Description

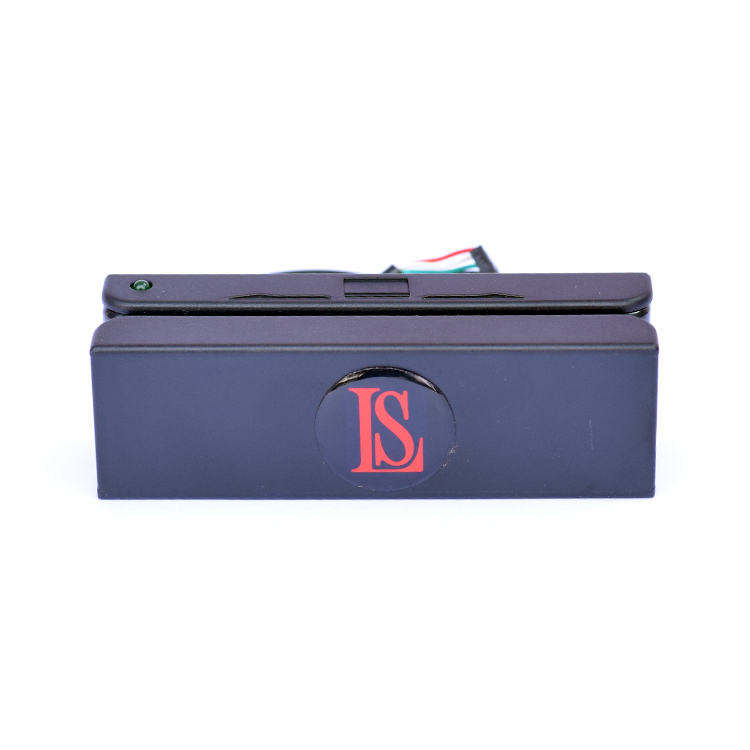

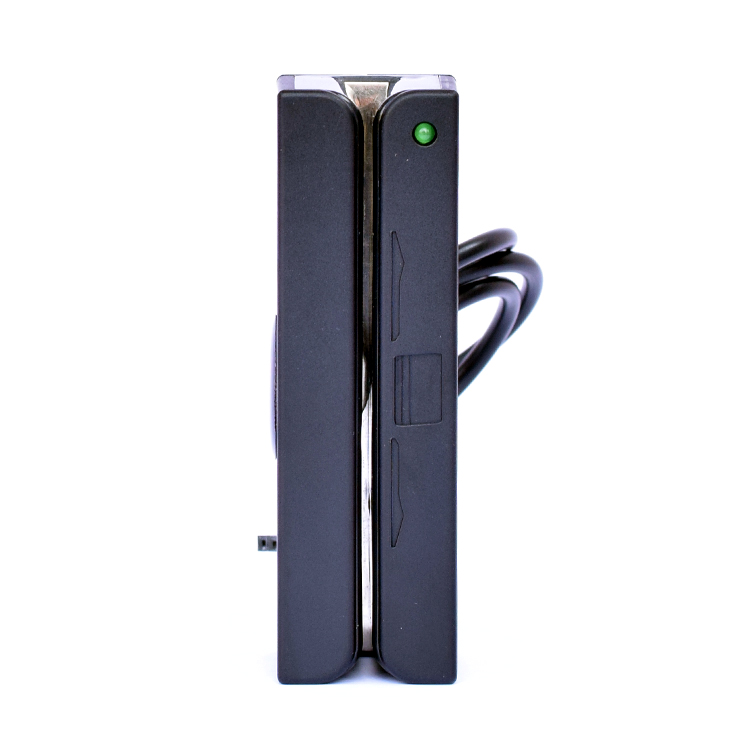

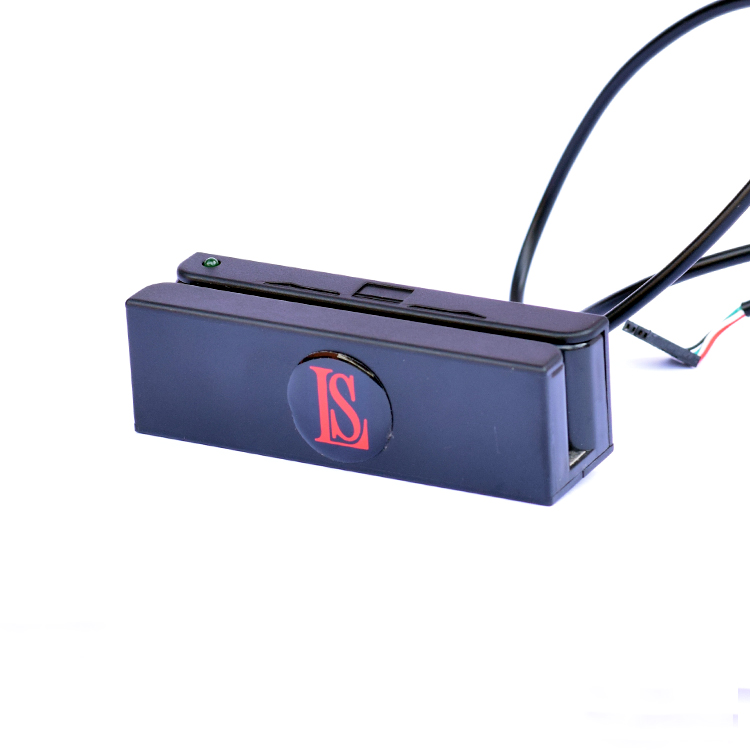

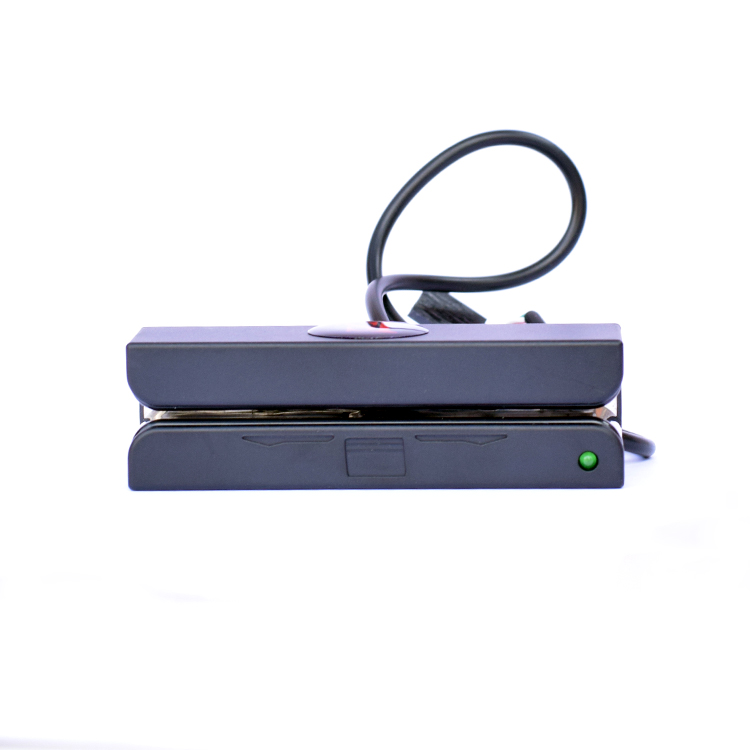

MSR (magnetic Stripe Reader) is a device used to read the information stored on the magnetic stripe on a credit or debit and loyalty card, which contains the cardholder's name, card number and other information. It is connected to a POS system through usb cable to process the data stored in the magnetic card.
| Specification | ||
|---|---|---|
| Model | : | LS-MSR100 Magnetic Stripe Card Reader |
| PCB size | Length : 90mm, Width: 26mm, Height: 28mm | |
| Weight | 100 gm | |
| CPU | 8 bit MCU | |
| Electrical | DC 5V ± 5% 65mA | |
| Product Description | Small | |
| ISO Standard | Track1 210bpi , 79 Alphanumeric Characters Track2 75bpi , 40 Numeric characters Track3 210bpi , 107Numeric charac |
|
| Performance | Swipe direction :Bidirectional Free software & Manual :Yes Free plastic rail / Magnetic slot : Yes Card thickness : Plastic0.76 ± 0.08mm Error rate : Less than 0.5% Head function : Read only1.5mm |
|
| Features | With indication of light Low power consumption ,good compatibility Easy Programmable |
|
| Cards Standard | ISO , AAMVA , CADMV | |
| OS | MAC, Windows XP , Windows7 , Vista , Android | |
| Communication | USB | |
| Life time of Header | 900,000 card passes (1 pass one swipe) | |
| Temperature | Operating Temperature : -10 ~ 50C | |
| Humidity | Relative Humidity : -20% ~70% rh | |
| Applications | Any movable data collection ( Tradeshows, Racing events) Point of sales Law enforcement (DMV card) Attendance (Student ID, Membership card) Conference Attendance Classroom Attendance Meeting Attendance Door Locking Systems |
